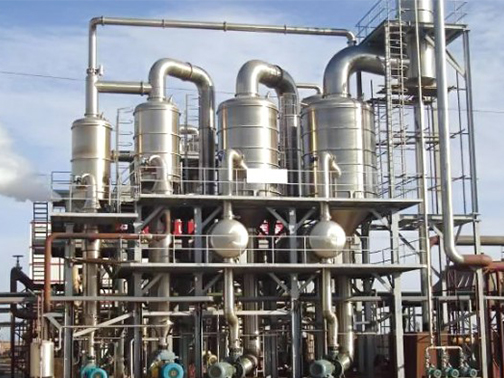

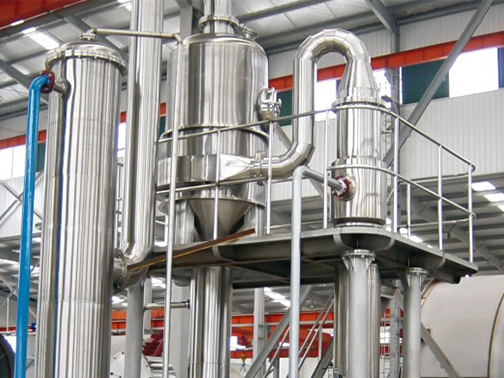

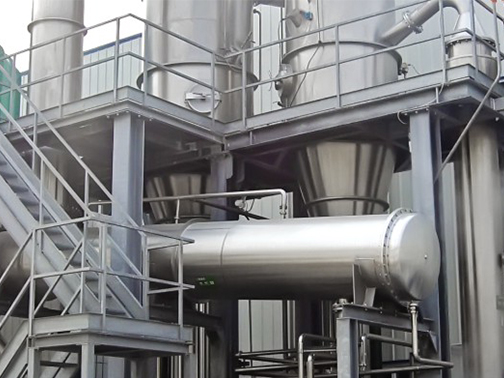

Forced circulation evaporator
Composed of different effect evaporators, separators, condenser, circulating pump, product pump, vacuum and water drainage system, cylinder, operation platform, electrical instruments control cabinet, valve and pipe etc. systems.
Application Fields
Forced circulating single-effect, double-effect, triple-effect and multi-effect evaporators are applicable for low temperature concentration of highly concentrated and highly viscous materials with insoluble solid things in food, medicine, chemical industry, biological project, environment protection project and waste liquid recovery industries etc.
Equipment characteristics
- Whole system with reasonable and beautiful design, stable operation,high efficiency,energy saving and low steam consumption.
- Large concentration ratio, forced circulating type, which can evaporate high viscosity material and short the concentration time.
- With special design,you can easily change effects through easy operation, to be applicable for making different product.
- Low evaporation temperature, the heat can be fully used. The material heating is gentle, so it is applicable for concentration heat sensitive materials.
- After forced circulating, the inner pipe heated averagely, heating transfer factor is high, which can avoid “dry wall” phenomenon.
- The material can be separated after going into separator,which improve the separating effect, and it is flexible to operate.
- The whole set equipment is quite compact, which need small space, and the layout is simple and smooth, which represent large whole set evaporating equipment developing direction.
- Continuous materials inlet and outlet, and material liquid level and needed concentration can be automatically controlled.
Technical parameters
Triple effect forced circulating evaporator
Model and specification: SNQZ-XX
XX-moisture evaporation capacity (L/h): 6000、8000、12000、
15000、18000、36000、46000、55000、75000、90000、
110000
Double effect forced circulting evaporator
Model and specification: SNQZ-XX
XX-moisture evaporation capacity (L/h): 4000、5000、8000
Single effect forced circulating evaporator
Model and specification: SNQZ-XX
XX-moisture evaporation capacity (L/h): 1000、1500、2000
|
Model
|
Single-effect
|
Double-effect
|
Triple-effect
|
Four-effect
|
Five-effect
|
|
Water evaporating capacity Kg/h
|
500-2000
|
1200 -5000
|
3600-20000
|
12000-50000
|
20000-120000
|
|
density of inputting material%
|
Depending on different materials
|
|
Density of outputting material%
|
Depending on different materials
|
|
Steam pressure Mpa
|
0.05-0.1
|
0.6-0.8
|
|
Steam consumption Kg/Kg evaporation capacity
|
1.13
|
0.38
|
0.28
|
0.28
|
0.23
|
